X32 Show Builder

Your gear list → a ready-to-load show file.
1Hardware
2Account
3Stage Box Inputs
4Console Local XLR Inputs
5Aux Inputs
6Define Faders
7Outputs
8Monitors
9Groups
10Review & Export

Your hardware

Pick your console and stage boxes, then tell us what you run.

Your platform

Pick this first — it sets which consoles and expansion cards you'll see below. Stage boxes work with either platform.

Console

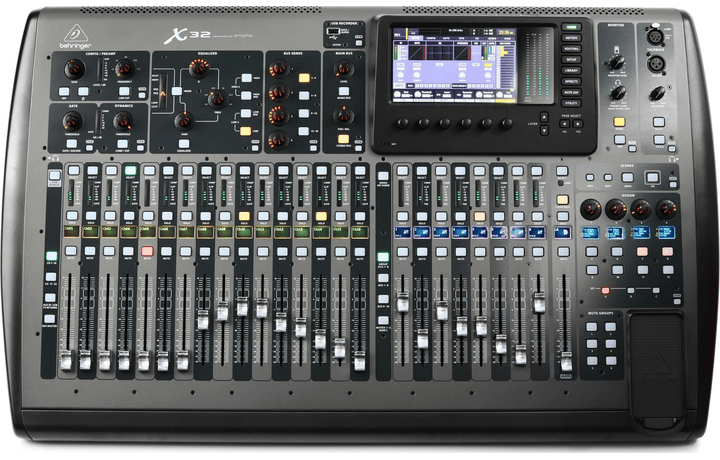

X32 (Full)
X32 (Full)
32 in · 16 out

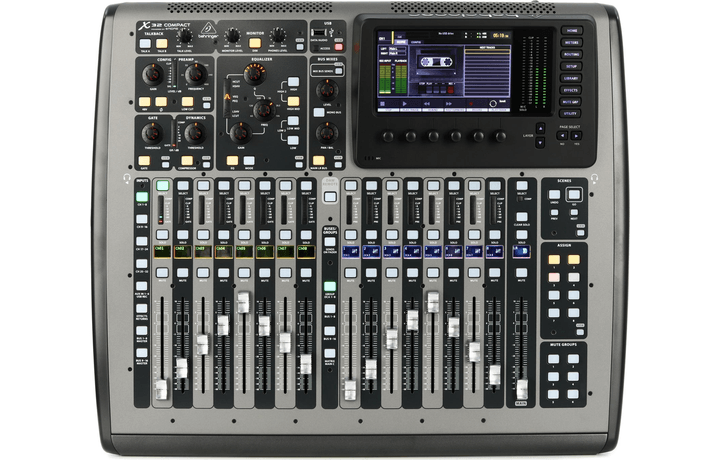

X32 Compact
X32 Compact
16 in · 8 out

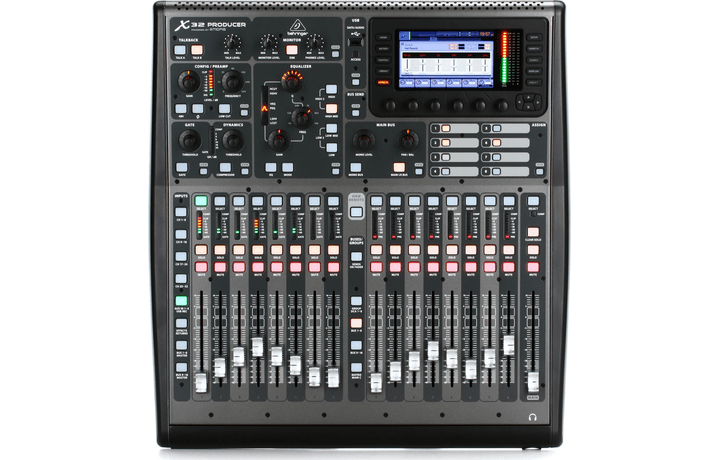

X32 Producer
X32 Producer
16 in · 8 out

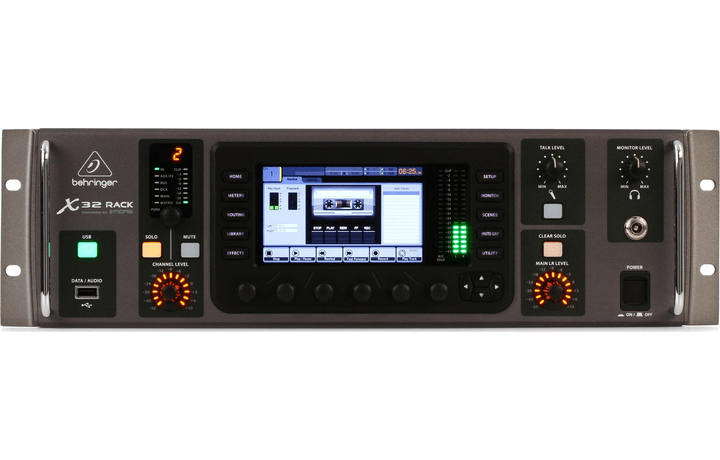

X32 Rack
X32 Rack
16 in · 8 out

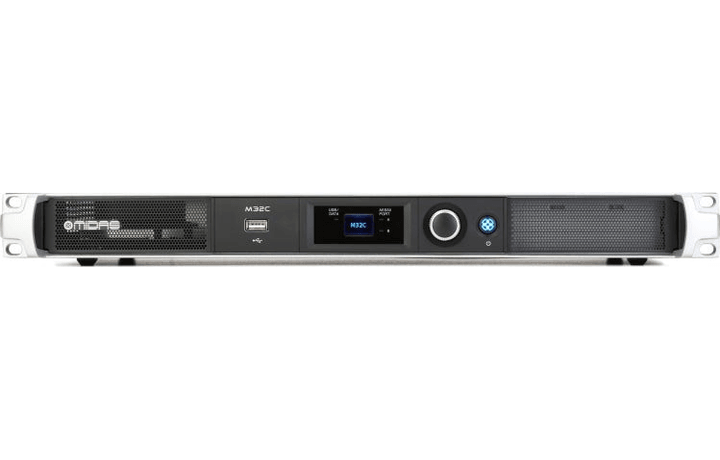

X32 Core
X32 Core
0 in · 0 out
WING
WING series soon
Coming soon. Drop your email and we'll notify you.

Stage boxes

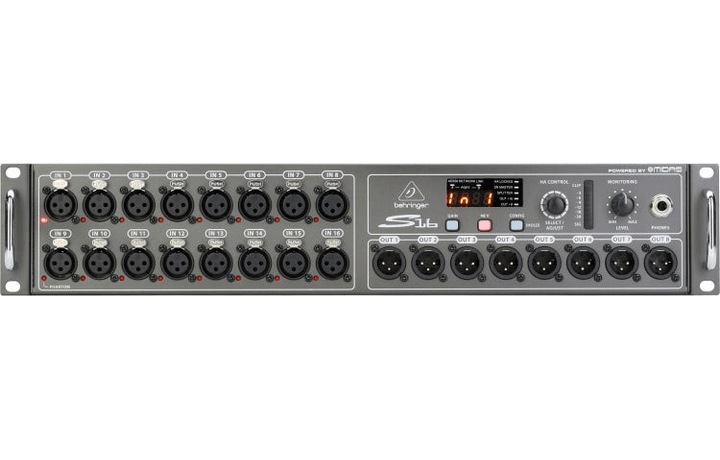

S16
S16 / DL16
16 in · 8 out — same box, two brands. Pick one:

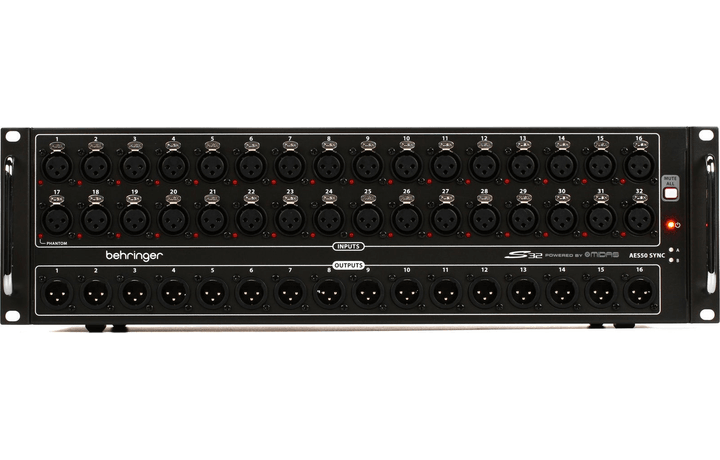

S32
S32 / DL-32
32 in · 16 out — same box, two brands. Pick one:

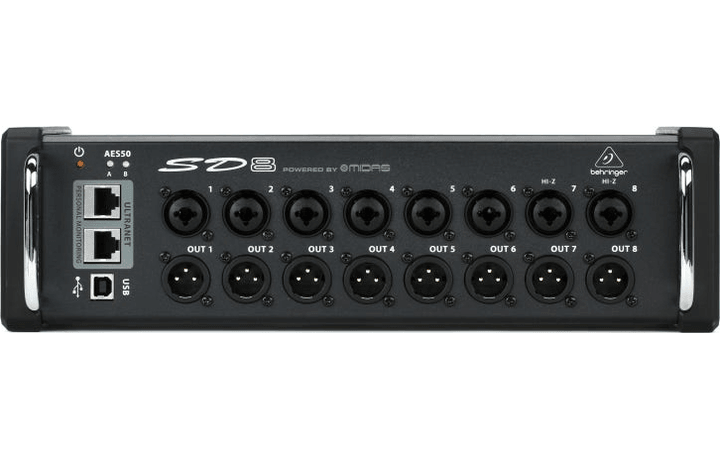

SD8
SD8
8 in · 8 out · 8 P16 · click to add

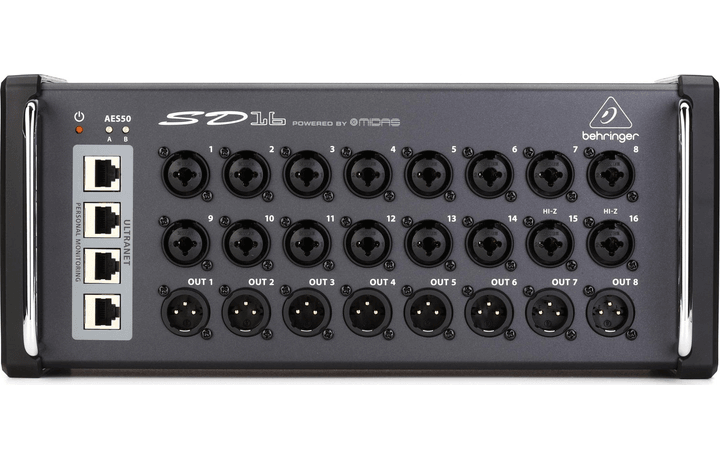

SD16
SD16
16 in · 16 out · 16 P16 · click to add

Expansion card (rear slot)

Every X32 has one 32×32 card slot. Most ship with X-USB. The USB cards let the console stream to a computer and multitrack-record; a Dante / MADI card gives a network I/O tab instead.

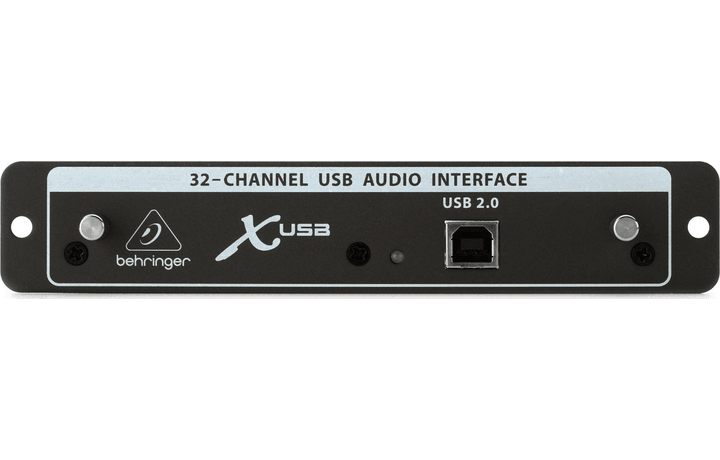

X-USB
X-USB (default card)
32×32 USB — recording, streaming

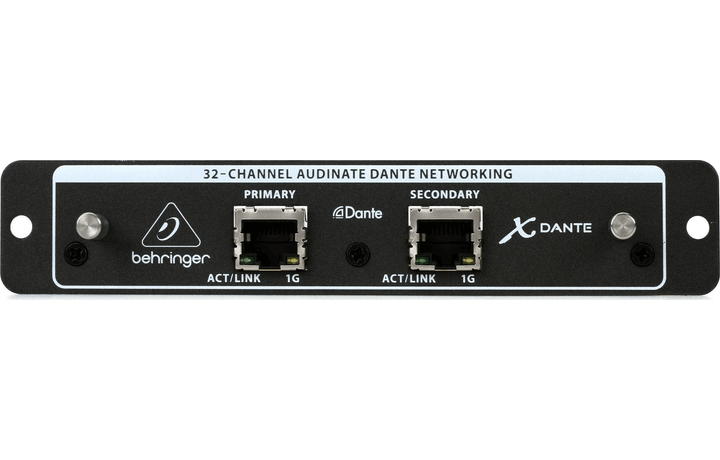

X-DANTE
X-DANTE
32×32 Dante network — redundant RJ45

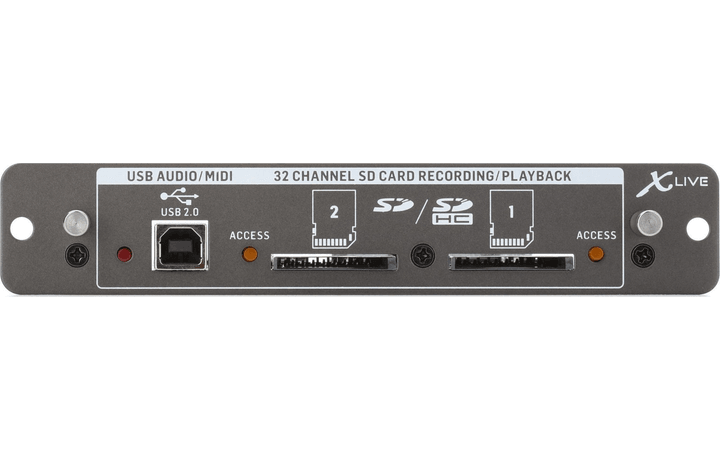

X-LIVE
X-LIVE
32-track SD recorder + USB

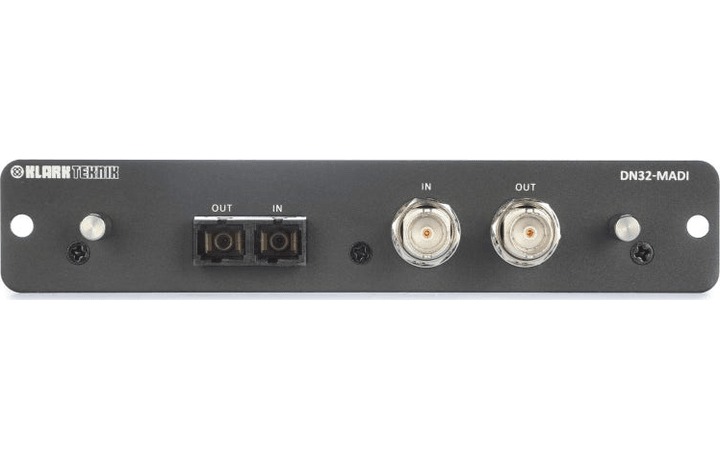

X-MADI
X-MADI
up to 64×64 MADI (optical + coax)

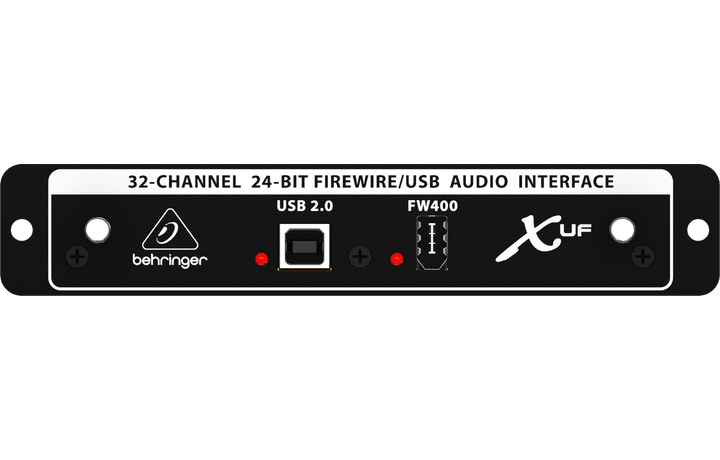

X-UF
X-UF
32×32 USB + FireWire (legacy)

Live streaming

Are you streaming your service, and how does the audio leave the console?

Not streaming
No stream mix.
Streaming via software
OBS, ProPresenter… on a computer, fed over USB from the console.
Streaming via hardware
An encoder or video switcher (ATEM, Resi, BoxCaster) fed from two console outputs.

Effects rack

FX rack — 4 of 4 effects onA ready-to-use effects rack — reverbs and delays, returned to your mains, with every instrument pre-sent to the instrument reverb and every vocal to the vocal reverb + delays at unity. Push up DCA 8 ("Effects") and the whole rack comes in; pull it down, it's gone. Each effect uses one mix bus — turn off Tap or Slap to free a bus for more in-ear mixes (Instrument & Vocal reverb are the two you really want).

Monitors

4/16mix buses4 FX · 0 stream · 0 monitors
☐ Stage wedges
Mono floor monitors — 1 bus + 1 output each.
☐ Wired in-ears
Mix-bus IEM feeds out XLR to body packs. Stereo mixes use 2 buses; mono uses 1.
☐ P16 in-ears
Ultranet personal mixers. The feeds are free, but group mixes (below) each reserve a mix bus.

Music / playback input

Tell us where and how it connects.
